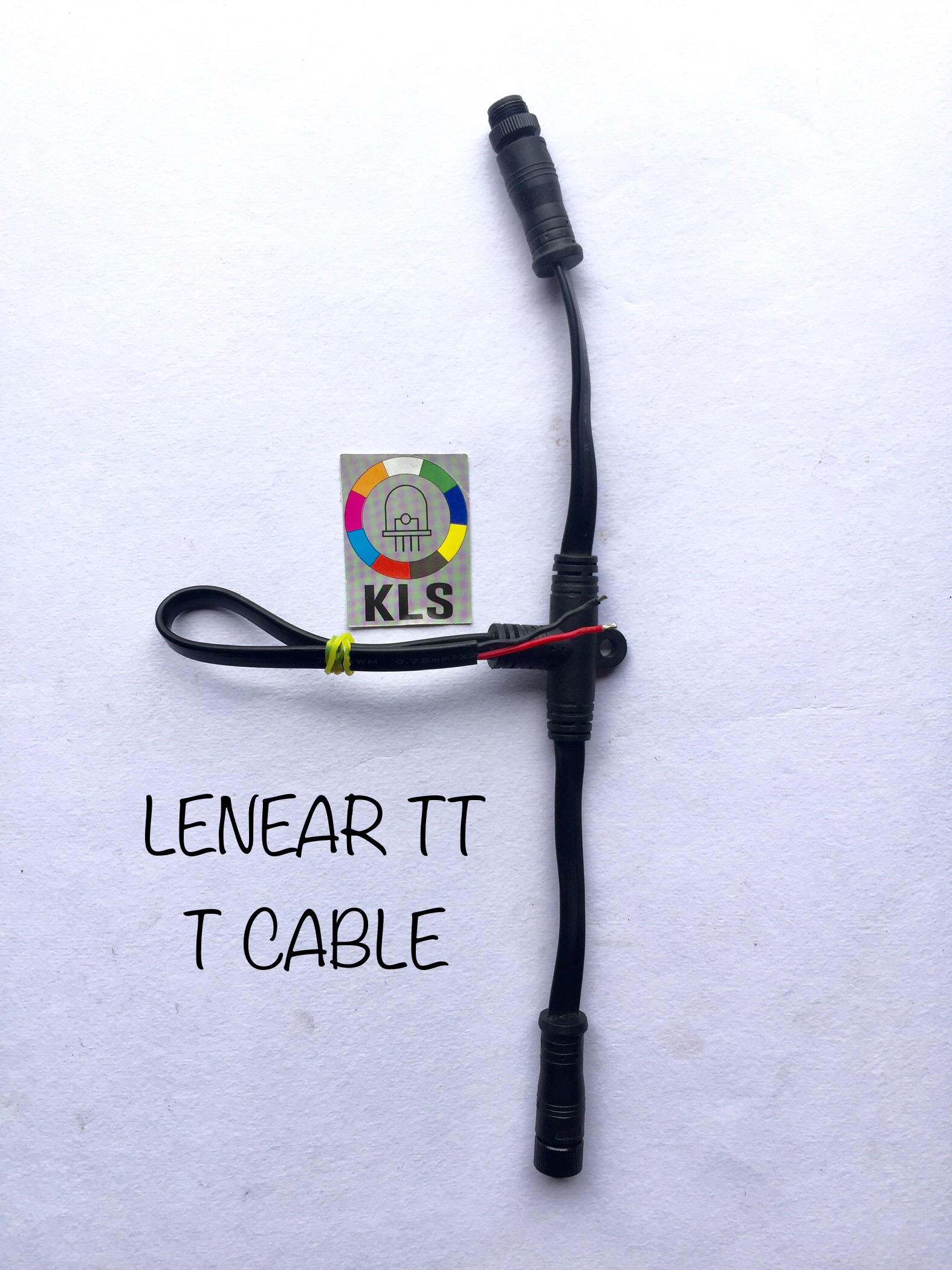

LINEAR CONNECTOR

LINEAR CONNECTOR Specification

Usage
VARIOUS

Power Supply
Electric

Power Rating
OTHER

Product Type
LINEAR CONNECTOR

Application
Industrial

Function
TO PASS VOLTAGE

Color
Black

Usage & Applications
VARIOUS

Warranty
1 Year

Cable Type
LINEAR

Material
CONNECTOR

LINEAR CONNECTOR Trade Information

Minimum Order Quantity
100 Pieces

Payment Terms
Cash Advance (CA), Cash in Advance (CID)

Supply Ability
5000 Pieces Per Day

Delivery Time
3 Days

Sample Available
Yes

Sample Policy
Contact us for information regarding our sample policy

Main Export Market(s)
Asia

Main Domestic Market
All India

About LINEAR CONNECTOR

"Linear connector" refers to several different types of components depending on the industry, primarily categorized into mechanical structural components, linear motion hardware, and electrical/lighting connectors.

1. Mechanical/Structural Linear Connectors (Aluminum Profiles)

These are used to join two profiles (such as aluminum T-slot extrusions) end-to-end in a straight line.

Description: Typically a rigid, flat bar or plate, often made of zinc-plated or carbon steel for high strength.
Function: Slides into the T-slots of two profiles to create a continuous, straight structural member.
Applications: Used in building CNC routers, 3D printers, machine guards, and workstations.
Installation: Involves sliding the connector into the profile grooves and securing it with set screws.

2. Linear Actuator Connectors (Motion Components)

These connect linear actuators (devices that create motion in a straight line) to other mechanical components.

Description: Two-part, clamp-style connectors, often made of aluminum or stainless steel.
Function: They allow for the adjustment of guide bores and provide a secure, sometimes adjustable connection to a drive key.
Types: Include base plate connectors (GN 165.1), two-way connectors (GN 132.25), and flanged connectors (GN 146.1).
Features: Often include sleeve bearings or seals for durability and smooth operation.

3. Lighting/Electrical Linear Connectors

These are used in track lighting or LED profile systems to connect fixtures in a straight line.

Description: Often plastic or metal housing with conductive, metal pins inside to carry electrical current between lighting units.
Function: Joins two lighting tracks or profiles to create long, continuous lines of light.
Applications: Common in 3-phase track systems, DALI-controlled LED systems, and architectural lighting.

4. Other Uses

Glass Connectors: L-shaped stainless steel connectors used to join glass panels at 180 for frameless shower doors or partitions.
Linear Cable Adapter (LCA): A device used to translate rotation into linear movement for measurement.

Summary Table of Common Types

Type	Material	Key Application
Structural/Profile	Zinc-plated Steel	Framing, CNC, Workstations
Actuator/Clamp	Aluminum/Stainless Steel	Automation, Machinery
Track Lighting	Metal/Plastic	Architectural Lighting
Glass/Partition	Stainless Steel	Shower Enclosures
